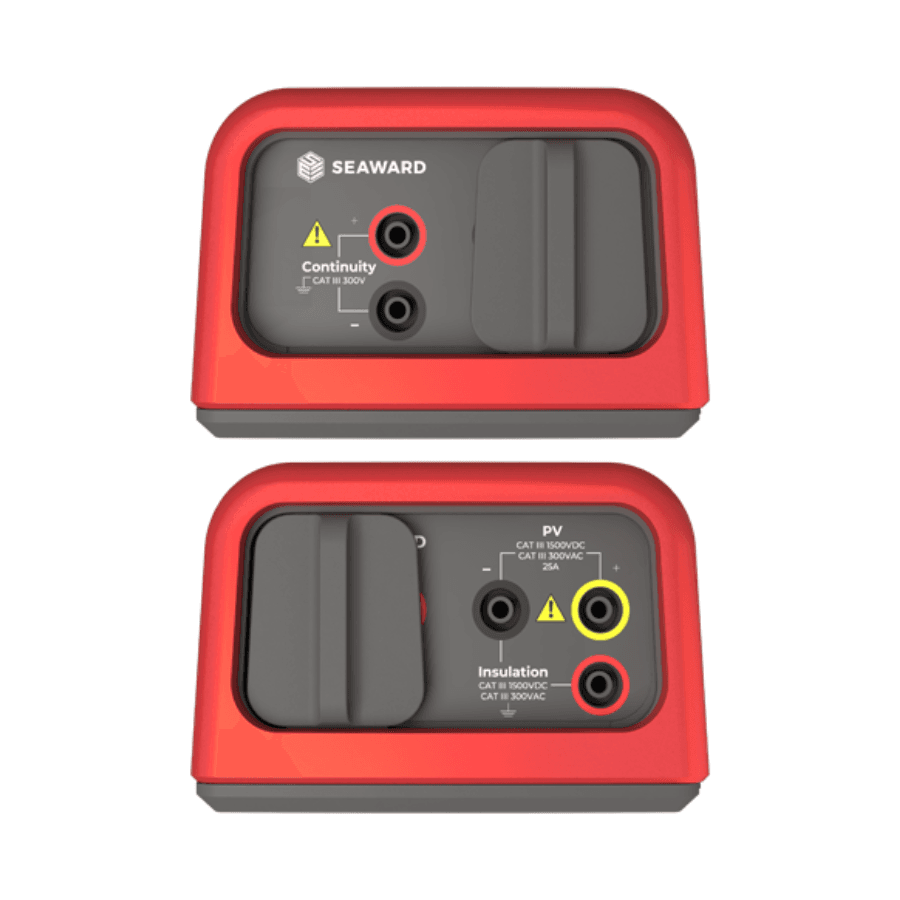

SEAWARD PV 1525 – Photovoltaic System Safety Tester
The SEAWARD PV 1525 is a compact, handheld device designed for testing the electrical safety of photovoltaic (PV) systems, suitable for both residential and commercial installations. Built to handle modern and future PV systems, it provides reliable measurements for a wide range of electrical parameters.
Key Features
High-voltage measurement: No-load voltage (Uoc) up to 1500 V DC
Short-circuit current (Isc) measurement: Up to 25 A for accurate system assessment
Insulation testing: Insulation resistance measurement up to 1500 V DC
Continuity testing: Low-resistance measurement with 200 mA test current
Operating power measurement: Integrated current clamp for power (W) readings
User-friendly interface: Intuitive menu navigation for easy operation
Portable and lightweight: Perfect for on-site inspections and fieldwork
Connectivity: Bluetooth interface for firmware updates and data transfer
The SEAWARD PV 1525 combines precision, safety, and portability, making it an essential tool for electricians, technicians, and PV system installers. Its robust functionality ensures accurate testing and reliable diagnostics for all types of photovoltaic systems.
